Electric actuator Butterfly Valve
Company Info |
|
| Company Name | Zhejiang Kider Valve Co., Ltd. |
| Country/Territory: | Zhejiang China |
| Business Type: | | 1 |
| Number of Employees: | |
| Main Products: valves pipe fitting flange valve component good service | |
>> Details:

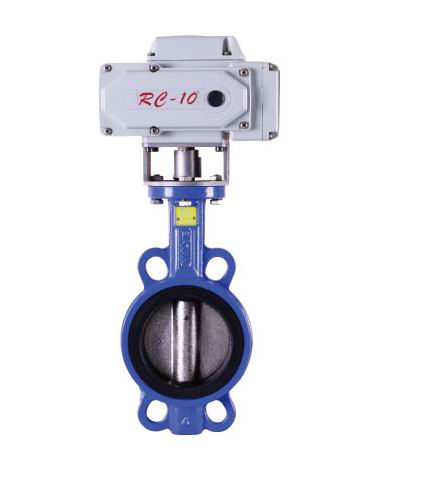

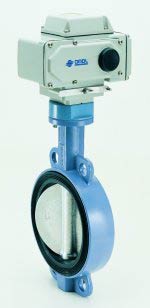

Electric actuator Butterfly Valve
ˇ¤1:Certificate:ISO9001,TS,CE
2:Design : API 600, API 6D, JIS,DIN
3:Size:1/2"~24"
Valve Standard:Comply with EN593/BS5155/MSS SP-67.
ˇ¤Working Pressure and Temperature
Size 50 to 600,working pressure PN 16/Class 125.
Size 50 to 300,working pressure PN 20/Class 150.
Size 50 to 300,working pressure PN 25/Class 250.
Temperature from -10ˇăC to 120ˇăC for EPDM liner.
Temperature from -10ˇăC to 82ˇăC for NBR liner.
Temperature from -10ˇăC to 150ˇăC for Viton liner.
ˇ¤Top Flange standard: Comply with ISO5211/1.
ˇ¤Flange Type:EN1092-2 PN10/PN16/PN25,ANSI B16.1 Class125, ANSI B16.2 Class250,BS10 Table D/E,JIS 10K/16K.
ˇ¤Operator:Handle or gear operator.
ˇ¤Materials Specification
Part Name | Material | EN Spec. | ASTM Spec. |
Body | Cast Iron | EN-JL1040 | A126 Class B |
Shaft | Stainless Steel | BS970 420S37 | AISI 420 |
Disc | Stainless Steel | BS970 304S15 | A351 CF8 |
Bronze | EN1982 CC491K | B62 C83600 | |
DI Nichel Plated or FBE Coated | EN-JS1050 | A536 65-45-12 | |
Bushing | PTFE | Commercial | Commercial |
Liner | EPDM/NBR/VITON | Commercial | Commercial |
O-Ring | EPDM/NBR/VITON | Commercial | Commercial |
SUPERIOR QUALITY AND RESONABLE PRICE.
