JIS flanged ball valve

  • MOQ:15
  • Delivery Period:15 days
Company Info

Company Name China¡€Dongjin Valve Co.,Ltd.
Country/Territory: Zhejiang China
Business Type: | 1;
Number of Employees:
Main Products: ball valve gate valve check valve globe vlave y filter

>> Details:

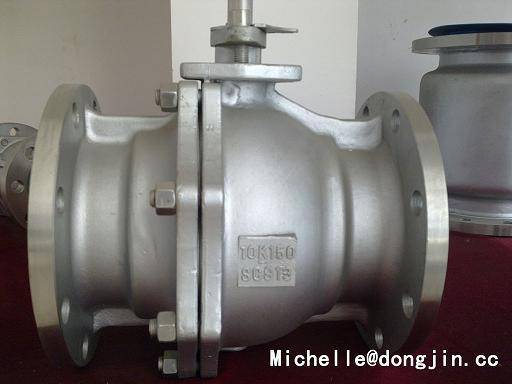

JIS flanged ball valve: Q41F/W/Y




Material: Carbon steel, Forged steel, SS304 SS316 SS316L, etc.


Specifications: DN15-DN600


Standard: ANSI, GB, JIS, DIN


Pressure:  1.6Mpa~32Mpa150LB~600LB 5k~63k


End connection: RF/RTJ Flanged ends


Brand: China Donjon


Working Temperature:-160~550C


Bore: Full bore


Type: Floating type Trunion type


Medium: Water, Oil, Gas, Nitric Acid, etc.


Model: Q41F-10K Q41F-20K Q41F-5K Q41F-63K Q341F-10K Q341F-20K Q341F-63K


Standard


Standard design according to ANSI B16.34 JIS2071


Face to Face: JIS B2002


 Flanged Ends: JIS B2212 2214


Testing: JIS B2003


Testing:

























Item



Shell Test



Seat Test



Back seal test



Gas seal test



Medium



Water



Oil



Unit



MPa



MPa



MPa



MPa



Applicable Pressure



10K



2.4
