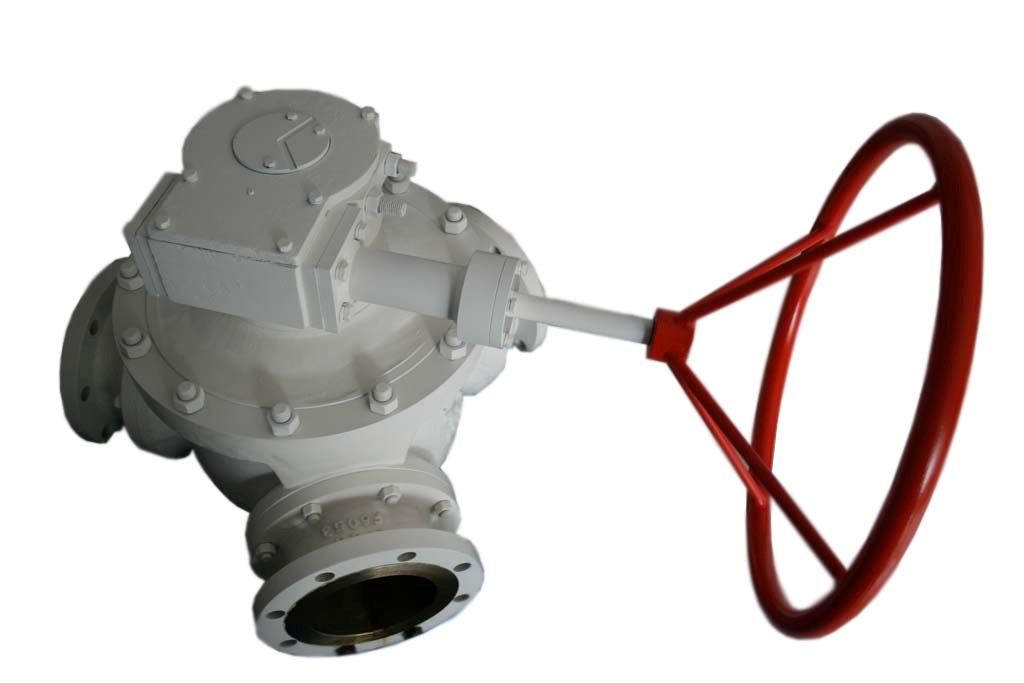

Y Port 3-way Ball Valve

  • MOQ:15
  • Delivery Period:15 days
Company Info

Company Name UNICIMA VALVE MANUFACTURING (CHENGDU)CO., LTD.
Country/Territory: Sichuan China
Business Type: | 1,4,5,8,9
Number of Employees:
Main Products: ball valve check valve gate valve globe valve butterfly valve

>> Details:


Products Range
Size
2"-12" (DN50DN300)
Temperature:-46¡ãC+280¡ãC
Pressure: ANSI 150lb, 300lb
Body: A216WCB,A352LCB,LCC,A351CF8,CF8M,CF3,CF3M,A890 4A,A890 5A,A890 6A,Hastelloy A,Hastelloy B,Hastelloy C,20 Alloy
Disc or BallA216 WCB (A105) ENP,A216WCB(A105)Hcr,A182,F304,F316,F304L,F316L,F51
StemAISI 4140,A182 F6a,F304,F316,F304L,F316L,F51,17-4PH,17-7PH
SeatPTFE,R.PTFE,PEEK PPL
Operation: Lever,Gear,Pneumatic & Electric Actuator
Features
135¡ã-135¡ã-90¡ã distribution design for bore
Bore is specially polished so to prevent the meduim from crashing,available for dividing,confluence or mixing fluid such as carbamide and plastic
Bore is specially polished so casing scraper can go through smoothly
Fire Safe and Anti-Static Construction
Blow-out Proof Stem
Smooth & Low Torque Operation
End Connection:
Flange
Application:
Oil,Chemical,Petrochemical,Metallurgical,Light industry,Refinery,Power station,Food,Pharmaceutical,Paper making,Mining etc.
Available
Used for dividing, confluence or mixing fluid
