3 Pcs Trunnion Type Ball Valve-Pipeline Valve
Company Info |
|
| Company Name | Wenzhou Shitong Valve Co.,Ltd |
| Country/Territory: | Zhejiang China |
| Business Type: | | 1,3,6,7,8 |
| Number of Employees: | |
| Main Products: api ball valve api gate valve api globe valve api check valve y-type strainer | |
>> Details:

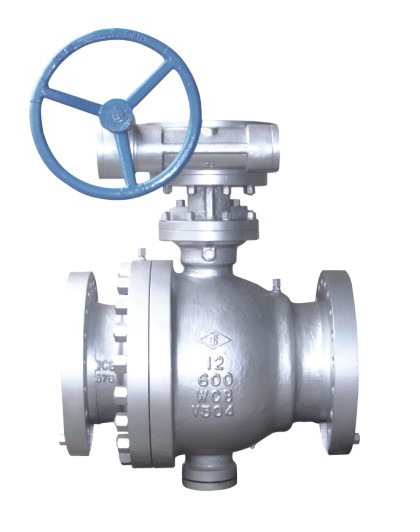

3 pcs trunnion type ball valve-pipeline valve.
The valve is especially designed to meet the severe requirments of customers and is widely used in chemical industry,petroleum&oils,natural gases,etc.
Design & manufacture standard: API6D, API608, ANSI/ASME B16.34, MSS-SP-72
Face to face dimensions: ANSI/ASME B16.10, API6D.
Flange connection: ANSI/ASME B16.5 for NPS24,ASME B16.47A/MSS SP-44 for NPS>24.
Butt-welding end dimensions: ANSI/ASME B16.25.
Inspection & test standard: API598, API6D.
Pressure: 150Lb, 300Lb, 600Lb, 900Lb or PN 2.0MPa~PN 15.0MPa or JIS 10K, 20K.
Nominal diameters: 1/2~ 24or DN15~DN600.
Major materials: WCB, WC1, WC6, WC9, A105, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc.
Driving option: manual/electric/pneumatic, etc.
Fire-resistant & anti-static design.
