Shanghai Datian Valve Pipe Engineering Co., Ltd.

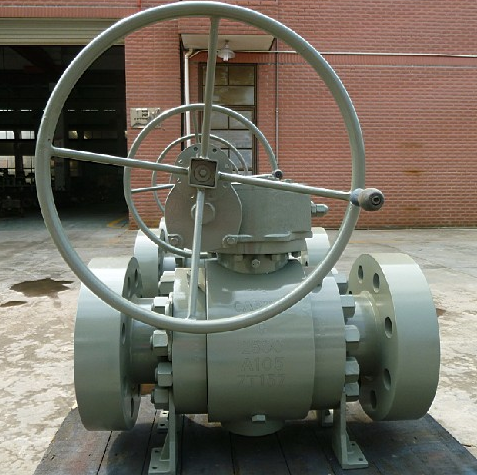

Datian valve provides the ball valve, such as One piece ball valve ,Fully welded ball valve, floating ball valve,Trunnion ball valve, forged ball alve, top entry ball valve,Pneumatic ball valve, API 6D ball valve, DIN ball valve, Flanged ball valve, High pressure ball valve,Industrial ball valve, Full bore ball valve,Reduced bore ball valve,Welcome to Datian Valve.

Detailed specifications:
Design and Manufacture: API6D. ASME B 16, 34. BS. 5351,
Face to Face Dimension: ASME B 16.10, API. 6D
End Flange Dimension: ASME B16.5, ASME B 16.47 DIN2501
Welding Ends Dimension: ASME B 16.25
Pressure-temperature Ratings: ASME B 16.34
Inspection and Test: API 598. API. 6D
Type of Operation: Manual, Gear, Electric, Pneumatic, Gas over Oil
Size: NPS2"~24" Pressure: Class 150Lb-2500Lb
Anti-Static Design Fire Safe Design as per API607/6FA
Materials: WCB. WCC. WC6. WC9. C5. C12. LCB.

Body material A216-WCB A351-CF8M
Disc material SS316 SS316
Stem material SS316 SS316
Seat material SS316 SS316
Seal ring material Flexible graphite Flexible graphite
Back ring Silicon rubber Silicon rubbe

Actuator
Type: DIAPHRAGM ACTUATOR (ZHX)
Membrane material: Neoprene nipped nylon
Spring range: 80~200KPa
Air feed pressure: 300 KPa/340 KPa
Supplier interface: RC1/4"
Environment temperature: -20~+70 celsius degree.
The type of valve acting: Direct action(Air to valve shut) or Reverse action(Air to valve open)
Attachment: Localizer\reducer of air filter \keep location device *\journey switch *\transport *\hand wheel organ and so on
(*Illustrate details when need to order)
